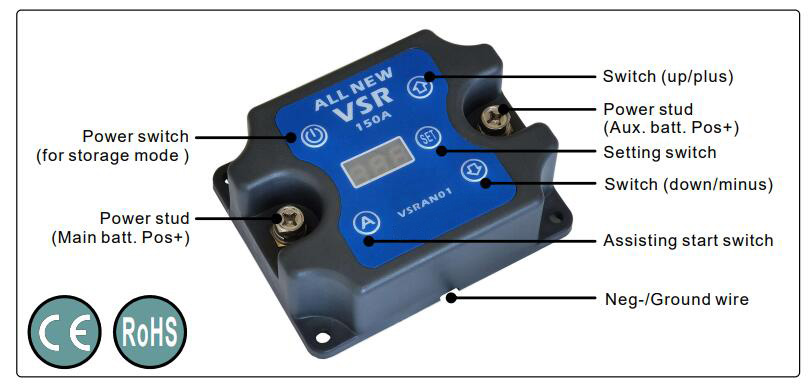

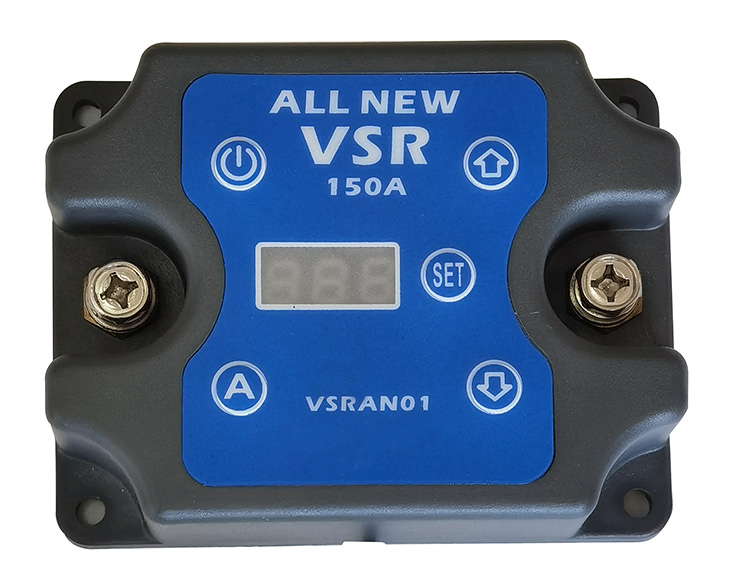

150A ALL NEW VSR

Model:VSRAN01

Programmable design, voltage and delay time are adjustable

Dual voltage display, displays tow battery voltage in real time

Automatic control, charging at the same time and discharging separately

Delay on-off function design to avoid peak and surge shock

Ignition protection

Water and dust proof (IP65)

Ratings: 8-32Vdc, 150A continuous, 250A intermittent

Engage: 13.3Vdc,10s delay(default)

Disengage: 12.8Vdc,10s delay(default)

High voltage protection: 15.5Vdc (default)

Operation voltage range: 10-32Vdc

Operating current: 300mA

Standby current: 5mA max.

Assist starting: panel switch (once a trigger to work for 60s)

Power studs: M6 brass and stainless steel,5-3NM torque

Ingress protection: IP65(main unit)

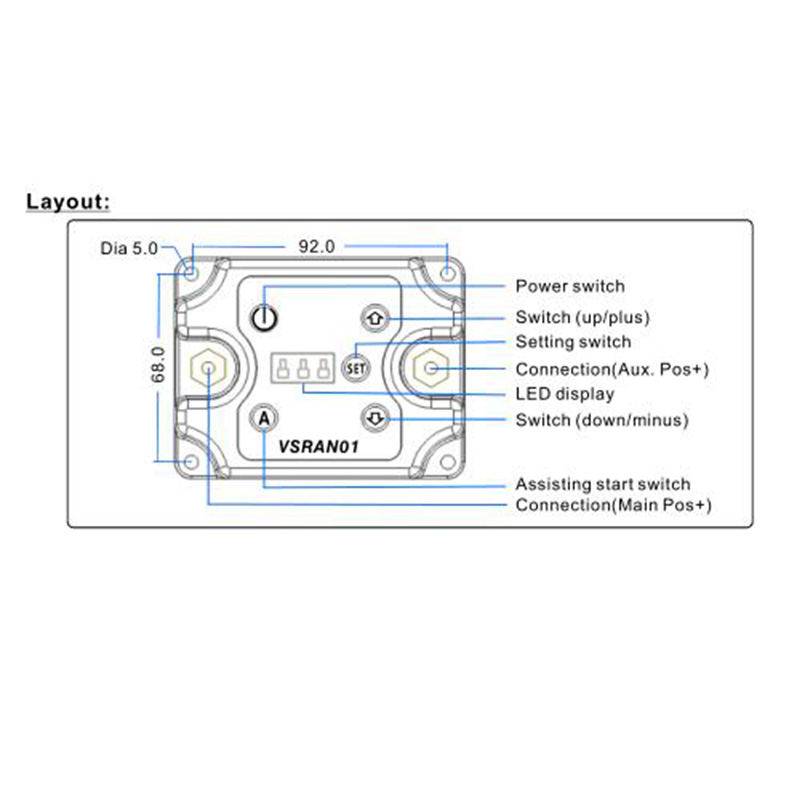

Dims: 104*80*42mm (plastic housing)

Net weight: 0.26Kgs
